Sync Status & Monitoring

Track your synchronization progress in real-time and review sync history with comprehensive logging.

Sync Status Dashboard

Access the sync monitoring interface at LZ SKU Sync > Sync Status.

Sync Status Dashboard

Status Indicators

The dashboard displays the current synchronization status with clear visual indicators.

Available Statuses

🔵 Not Started

  • No sync has been initiated yet
  • Ready to start first sync
  • Configure preferences and click "Start Sync"

🟡 In Progress

  • Active synchronization running
  • Progress bar shows completion percentage
  • Products being processed in background

🟠 Paused

  • Sync temporarily stopped by user
  • Queue preserved
  • Click "Resume" to continue

🔴 Cancelled

  • Sync terminated by user
  • Queue cleared
  • Cannot be resumed

🟢 Completed

  • All products processed successfully
  • Review results in "Recently Synced Items"
  • Ready for next sync

Progress Metrics

When a sync is active, real-time metrics are displayed:

Key Metrics

Total Products

  • Number of products in sync queue
  • Includes simple products and variations

Synced

  • Successfully processed products
  • Increments in real-time

Failed

  • Products that encountered errors
  • Check logs for error details

Pending

  • Products waiting in queue
  • Decreases as sync progresses

Progress Percentage

  • Visual progress bar (0-100%)
  • Updates automatically

Auto-Refresh

The status dashboard automatically refreshes: - Every 3 seconds during active sync - Updates progress metrics live - No page reload required

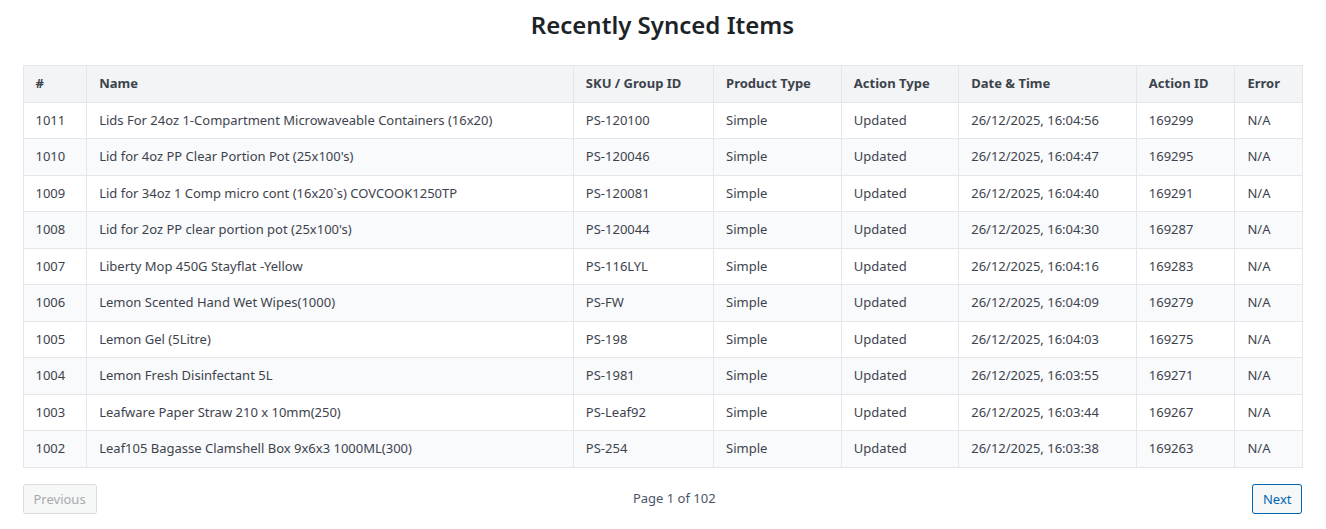

Recently Synced Items

View the last 30 days of sync activity in a real-time table.

Table Columns

Column Description
Product Name Name from Zoho Inventory
SKU Product SKU
Type Simple, Group, or Variation
Action Created, Updated, Failed, Image Upload, etc.
Date Timestamp of sync event
Action ID Link to Action Scheduler details

Recently Synced Items

Table Features

Pagination - 10 items per page - Navigate with Previous/Next buttons - Page numbers for quick jumping

Auto-Refresh

  • Updates every 3 seconds during sync
  • New items appear at top automatically
  • No manual refresh needed

Action Types

The "Action" column shows what happened to each product:

Product Actions

  • Created - New product created in WooCommerce
  • Updated - Existing product updated
  • Failed - Product sync encountered an error

Variation Actions

  • Created Variation - New variation created
  • Updated Variation - Existing variation updated
  • Variation Failed - Variation sync error

Image Actions

  • Image Upload - Images uploaded to product
  • Image Optimization - Thumbnail generation completed
  • Image Failed - Image processing error

Parent Product Actions

  • Parent Images Assigned - Gallery set for variable product
  • Parent Update Failed - Variable product image error

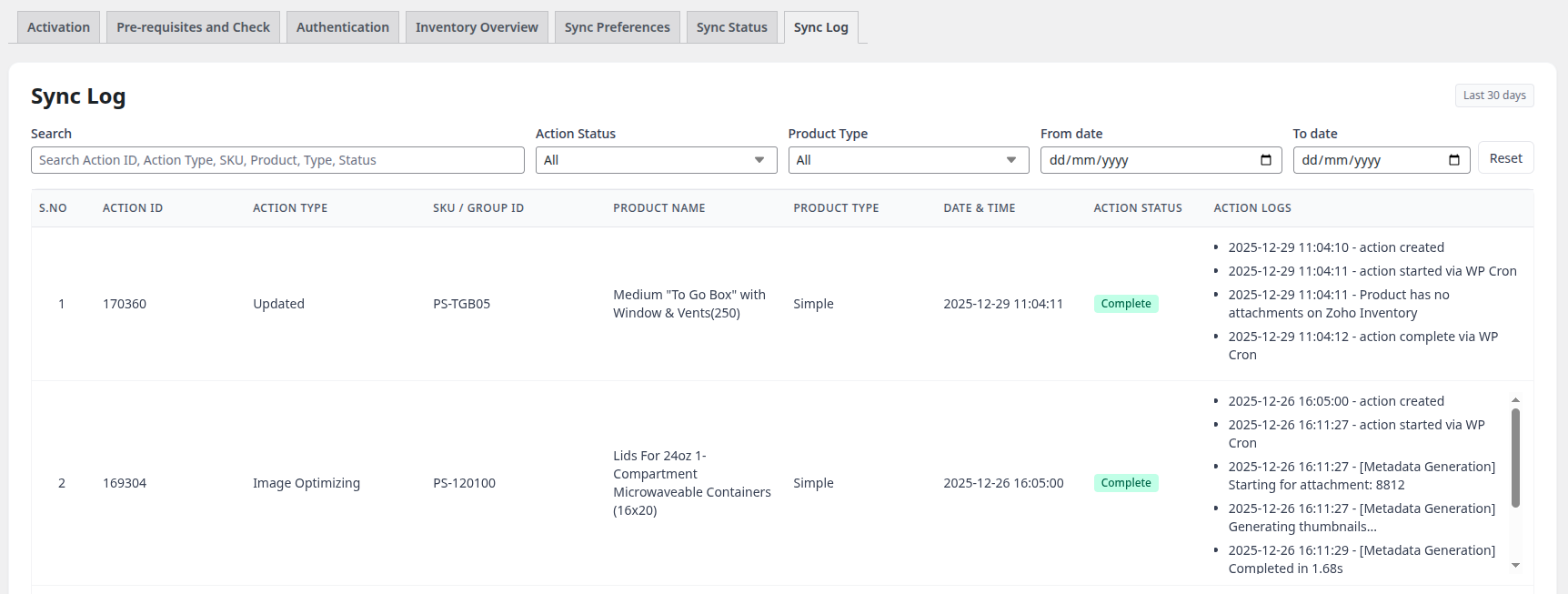

Sync Log (30-Day History)

Detailed log of all synchronization activities:

What's Logged

  • ✅ Manual sync start/complete events
  • ✅ Webhook sync triggers
  • ✅ Product create/update jobs
  • ✅ Image processing jobs
  • ✅ Variation processing jobs
  • ✅ Parent image assignment jobs
  • ✅ Error details with stack traces

Accessing Full Logs

For detailed technical logs:

  1. Go to LZ SKU Sync > Sync Log
  2. You can view the logs for the last 30 days
  3. Use advanced search, filters, and sorting features

Tip

See the Sync Log Guide → for complete documentation on using search, filters, and troubleshooting with the Sync Log.

Sync Log

Monitoring Best Practices

During Initial Sync

  1. ✅ Watch the progress bar to estimate completion time
  2. ✅ Monitor "Recently Synced Items" for errors
  3. ✅ Keep browser tab open (or close - sync continues in background)
  4. ✅ Check Action Scheduler if progress stalls

Real-Time Webhook Monitoring

  1. ✅ Watch for new items appearing in "Recently Synced Items"
  2. ✅ Verify timestamps match Zoho changes
  3. ✅ Check webhook status indicator (green = active)
  4. ✅ Review failed items immediately

Regular Health Checks

  • Check dashboard weekly
  • Review failed items from last 30 days
  • Verify sync frequency setting
  • Confirm webhook status (if applicable)

Understanding Sync Timeline

Manual Sync Timeline

1. Click Start Sync (instant)
2. Fetch inventory from Zoho (10-60 seconds)
3. Compare SKUs (instant)
4. Queue products (instant)
5. Process batch 1 (varies by product count)
   - Create/update products
   - Download images
   - Process variations
6. Progress updates every 3 seconds

Estimated Time:

  • 50 products: 5-10 minutes
  • 100 products: 10-20 minutes
  • 500 products: 60-120 minutes

Time varies based on images, variations, and server performance

Webhook Sync Timeline

1. Change in Zoho Inventory (instant)
2. Webhook POST to WordPress (1-5 seconds)
3. Signature verification (instant)
4. Fetch item details (1-2 seconds)
5. Enqueue sync job (instant)
6. Process product (10-30 seconds)
7. Appears in "Recently Synced Items"

Total Time: 15-40 seconds from Zoho change to WooCommerce update

Sync Performance Indicators

Healthy Sync Signs

  • ✅ Progress bar advancing steadily
  • ✅ "Synced" count increasing
  • ✅ "Pending" count decreasing
  • ✅ Low "Failed" count (0-2%)
  • ✅ Actions completing in Action Scheduler

Warning Signs

  • ⚠️ Progress bar stuck for >5 minutes
  • ⚠️ High "Failed" count (>10%)
  • ⚠️ "Pending" actions in Sync Log
  • ⚠️ PHP errors in debug log
  • ⚠️ Webhook status showing inactive (when should be active)

Troubleshooting Monitoring

Metrics Not Updating

Problem: Progress stuck, numbers not changing

Solution:

  • Hard refresh browser (Ctrl+F5 or Cmd+Shift+R)
  • Check LZ SKU Sync > Sync Log for queue status (see Sync Log Guide)
  • Review PHP error logs

Recently Synced Items Empty

Problem: No items showing after sync

Solution:

  • Sync may have failed to start
  • Check Action Scheduler for errors
  • Verify authentication is still valid
  • Review sync log for entries

Problem: Clicking Action ID shows "Not Found"

Solution:

  • Actions auto-delete after 30 days
  • Only recent actions have detail logs
  • Older actions show in sync history but logs are pruned
